SPECIFICATIONS

stock: sufficient

drop shipping: fast shipping

Punch Locator: Woodworking Drilling Locator Tool

Origin: Mainland China

Opening margin: 10-100m (double-hole handle), 15-100mm (single-hole handle)

Name: Handle punching locator

Model Number: Woodworking Hole Locator

Material: aluminum alloy

Handle hole distance: center hole/64mm/96mm/128mm

Feature 9: Drill Guide Punch Locator

Feature 8: Adjustable Punch Locator Drill Template Guide

Feature 7: Adjustable Drill Guide for Handles and pulls

Feature 6: Cabinet Template Tool for Handles and Pulls

Feature 5: Cabinet Hardware Jig

Feature 4: Wood Drilling

Feature 3: Woodworking Drilling Dowelling Template Drill Guide for Installing Handles, Knobs on Doors

Feature 2: Adjustable Punch Locator

Feature 1: Cabinet Handle Template Tool

Feature 09: drill guide

Feature 08: hinge jig

Feature 07: woodworking tools craigslist

Feature 06: drill press

Feature 05: drill locator woodworking

Feature 04: Carpentry

Feature 03: Hole Punch Tool

Feature 02: Adjustable Drill Guide Template Locator

Feature 01: Hole Punch Ruler

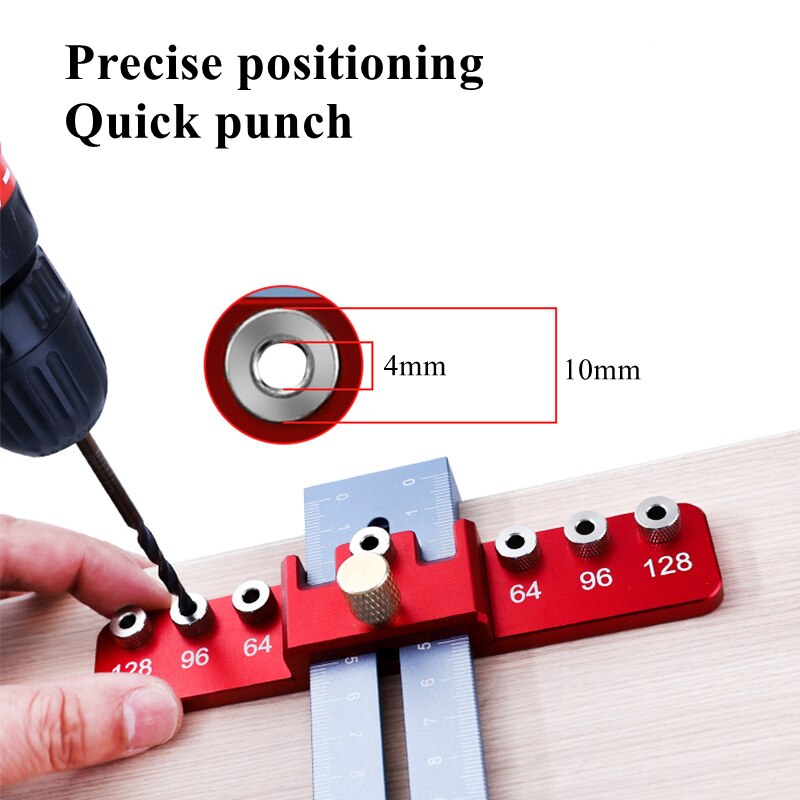

Drill sleeve size: 4mm

Drill Guide: locator for drilling holes,locator of holes for wood,drill locator,drill locator woodworking,ABS Aluminum Alloy,drill locator hole drill guide

Certification: CE

Feature:

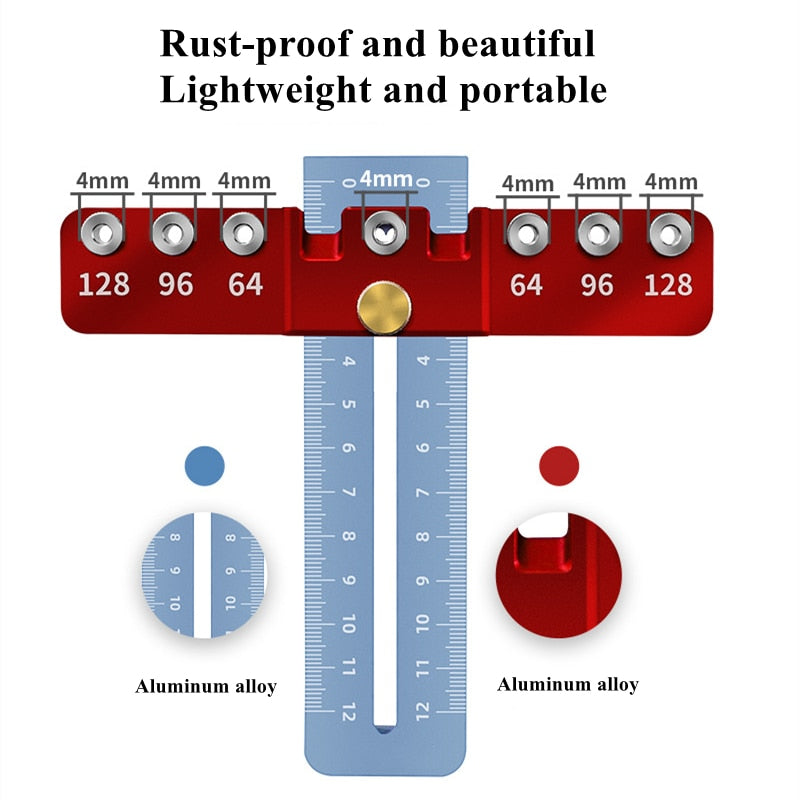

1. The main body of the small plane handle hole punch is made of aluminum alloy 6061, the surface is sandblasted, and the drill sleeve is stainless steel, which is wear-resistant and greatly prolongs the drilling life;

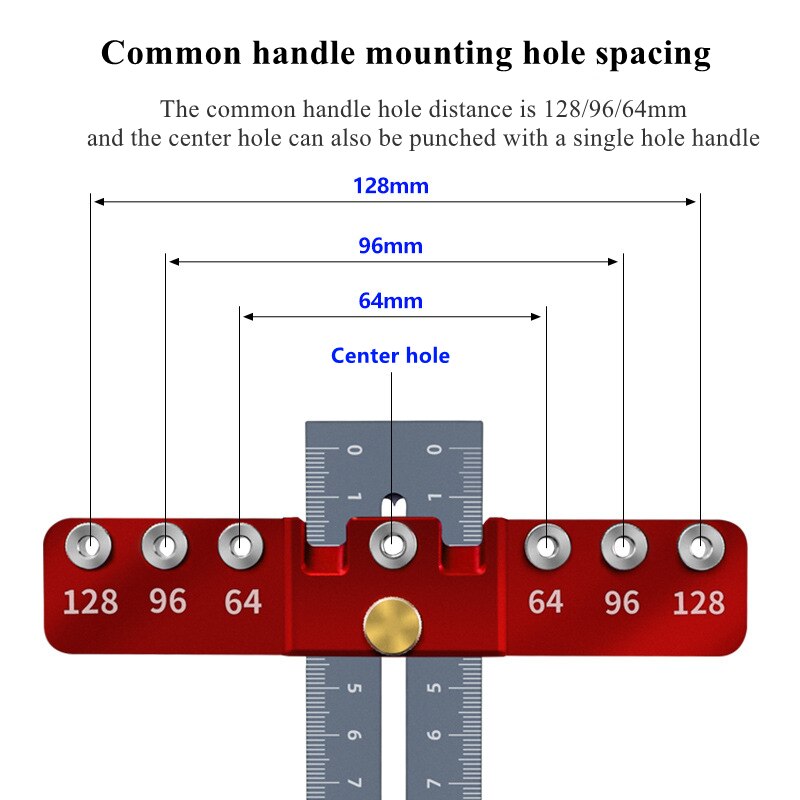

2. The hole distance of the double-hole handle is 64/96/128mm, and the punching specification is 4mm, which is suitable for most handle sizes on the market;

3. With a 4mm drill, the material is high-speed steel 6542, which can be used for metal.

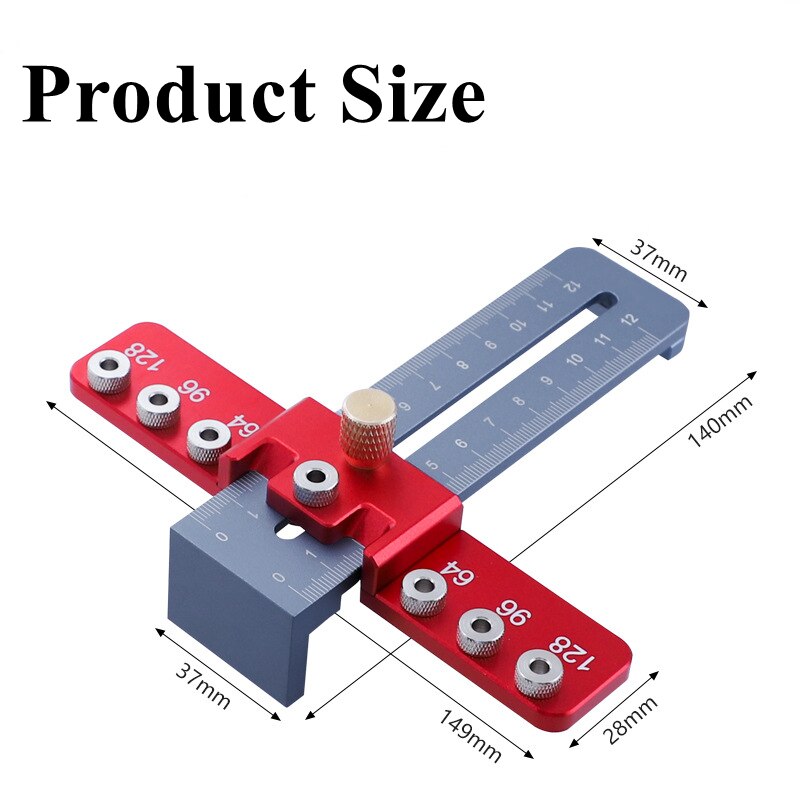

Specification:

Material: aluminum alloy

Opening margin: 10-100m (double-hole handle), 15-100mm (single-hole handle)

Handle hole distance: center hole/64mm/96mm/128mm

Drill sleeve size:4mm

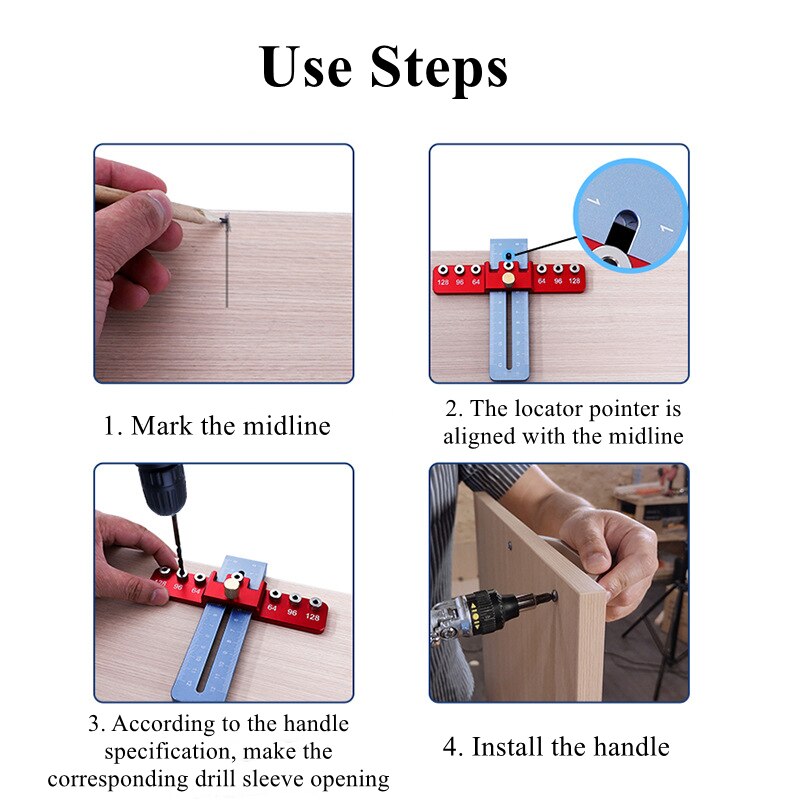

How to use:

1. Mark the midline

2. The locator pointer is aligned with the midline

3. According to the handle specification, make the corresponding drill sleeve opening

4. Install the handle

Package list:

Woodworking Hole Locator x 1pc

Note:

Due to the difference between different monitors, the pictures may not reflect the actual color of the item. Please refer to the actual.

Due to manual measurement, please allow 1-2 cm error. At least make sure you don't mind before buying.
