SPECIFICATIONS

Coating: AlTiN

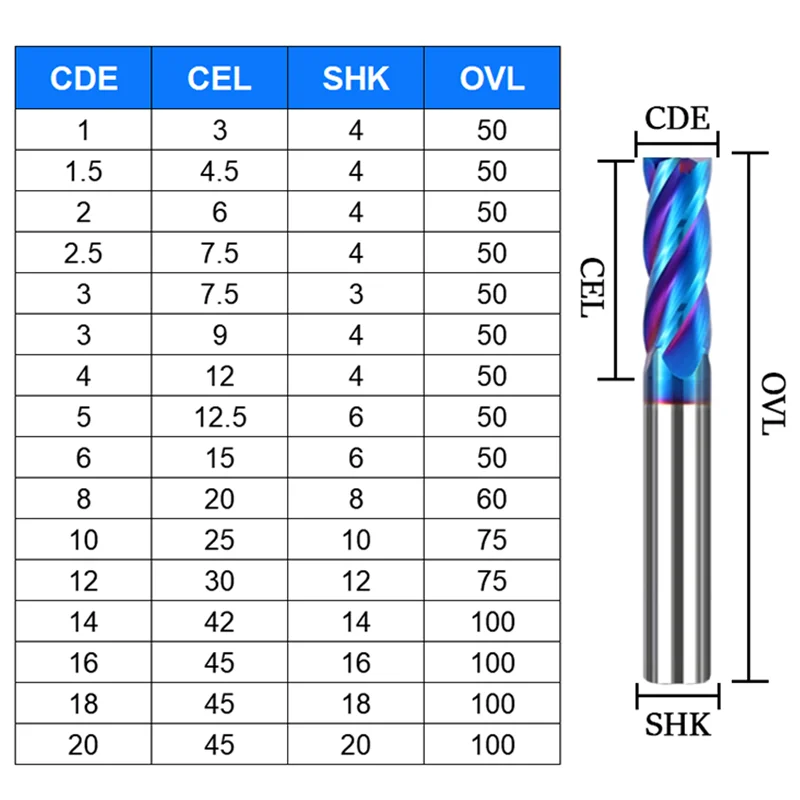

Diameter: 1mm-20mm

Edge number: 4 Flute

HRC: 65

High-concerned chemical: None

Material: Carbide

Model Number: HRC65 4 Flute Milling cutter

Origin: Mainland China

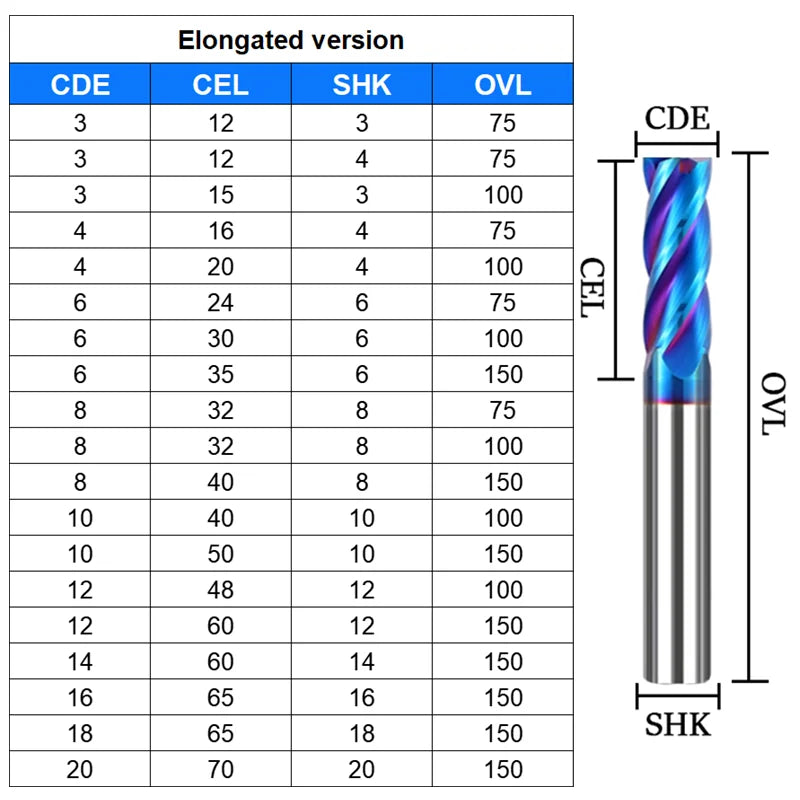

Overall Length: 50mm-150mm

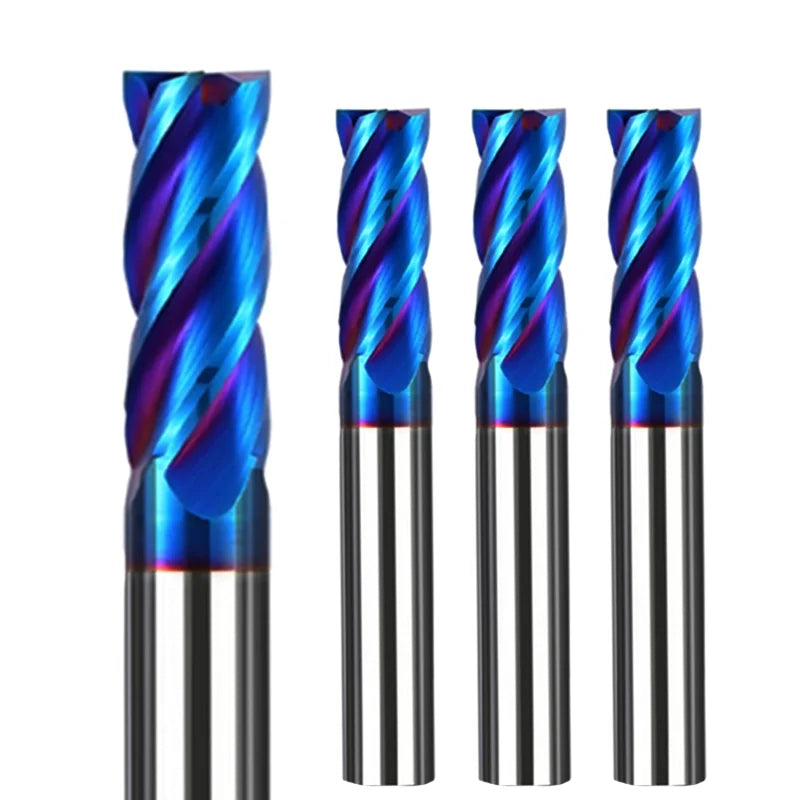

Type: End Mill

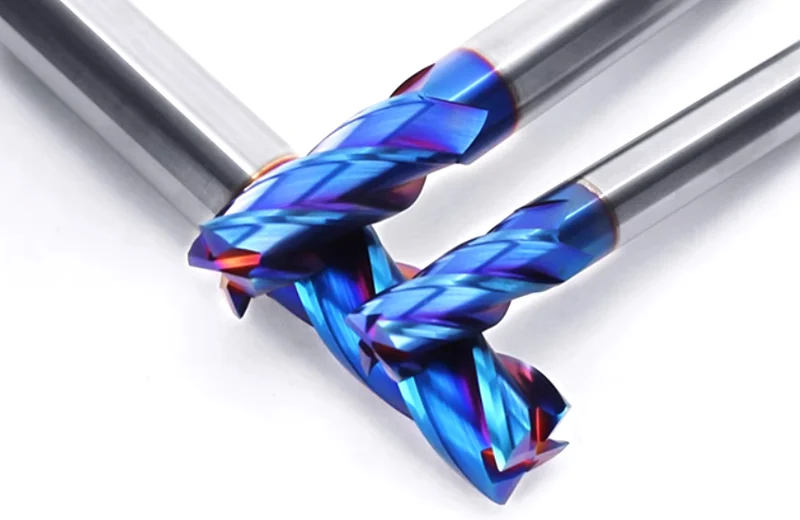

Product Characteristics
◆Material: tungsten steel/Carbide
◆Cutting hardness: HRC65

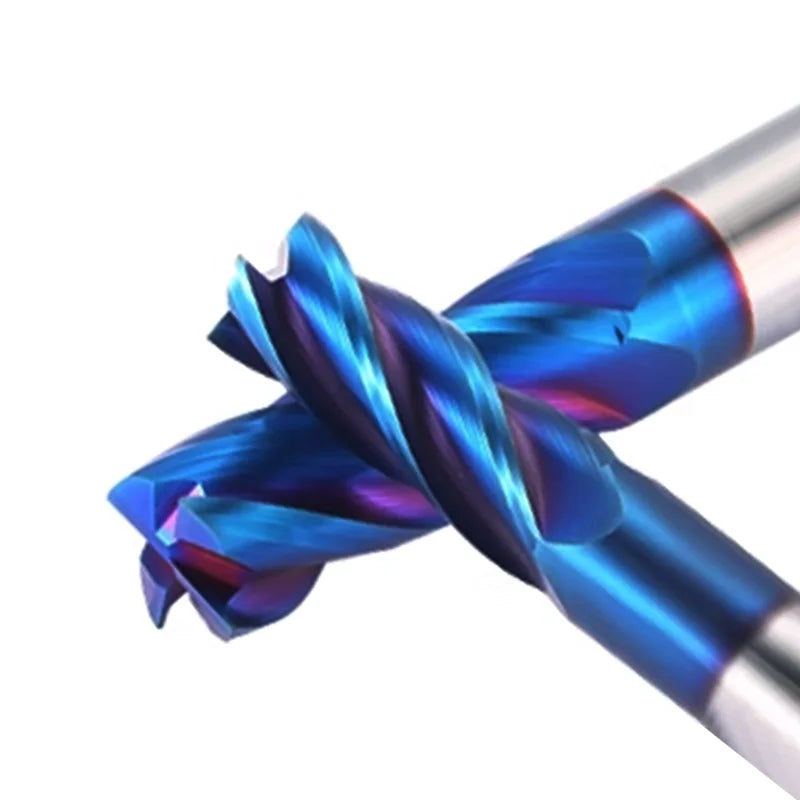

◆Coating: Blue Nanocoated

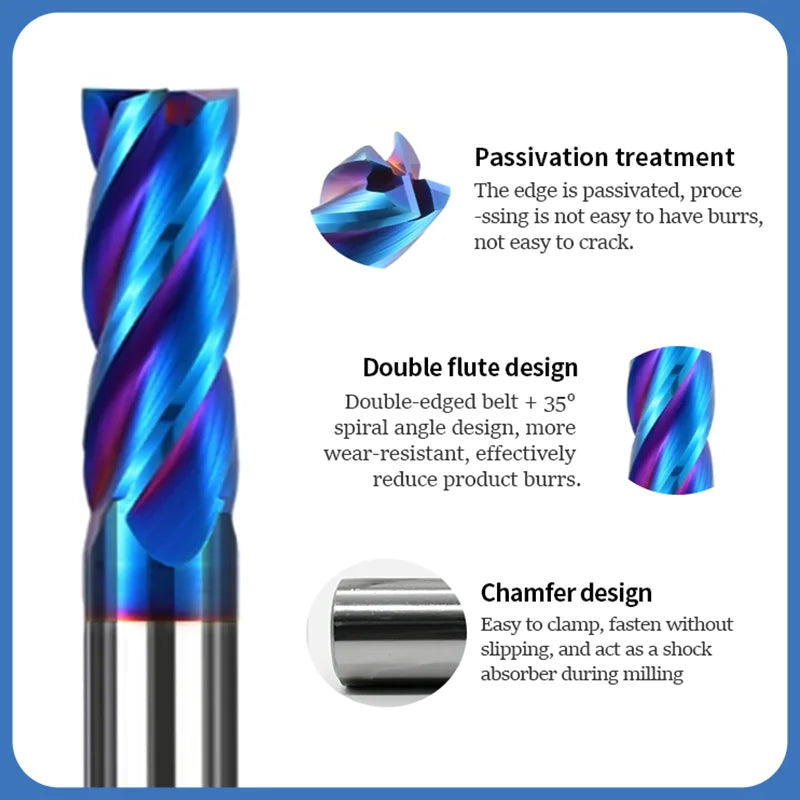

◆Sandblasting passivation treatment, surface precision cover, remove dirt, enhance oxidation resistance, extend service life.

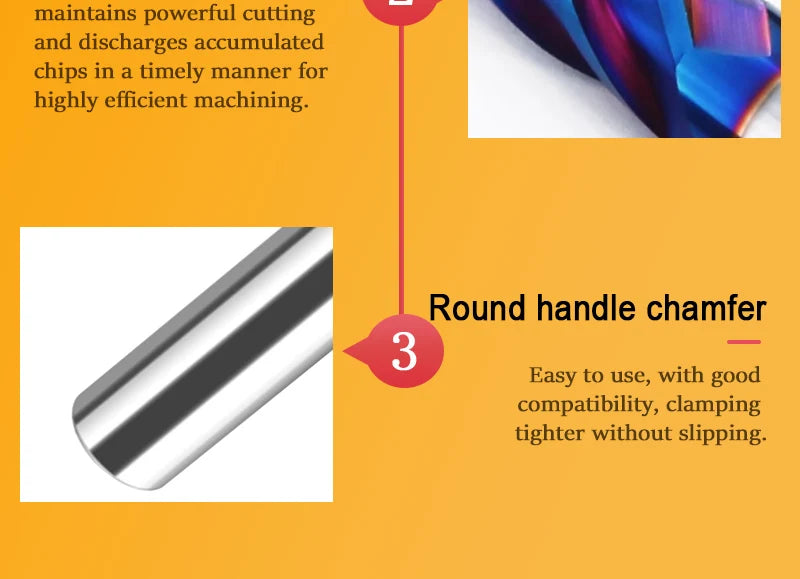

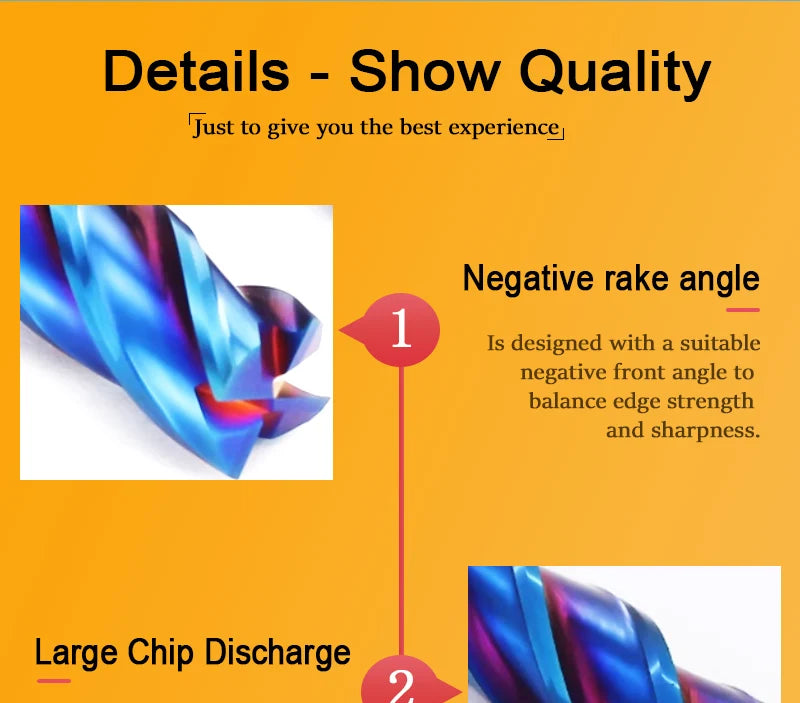

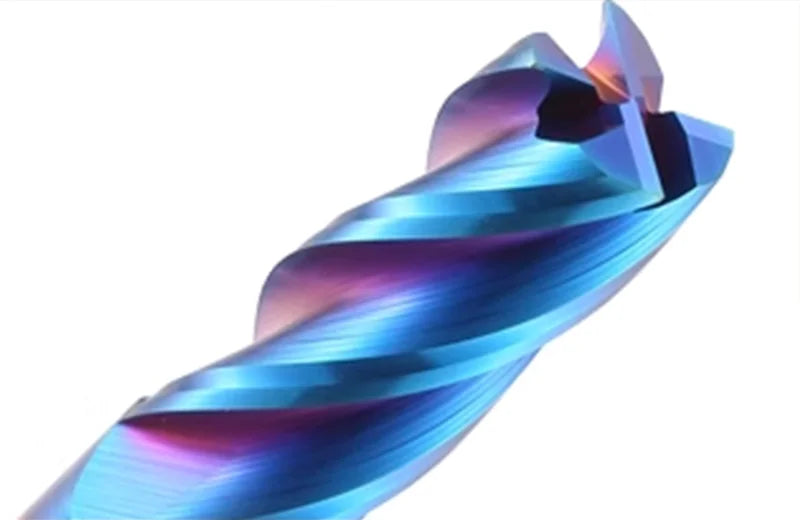

◆Side edge single edge belt design, all grinding edge, sharp and wear-resistant, reduce cutting stuck, cutting more smoothly.

Scope Of Application

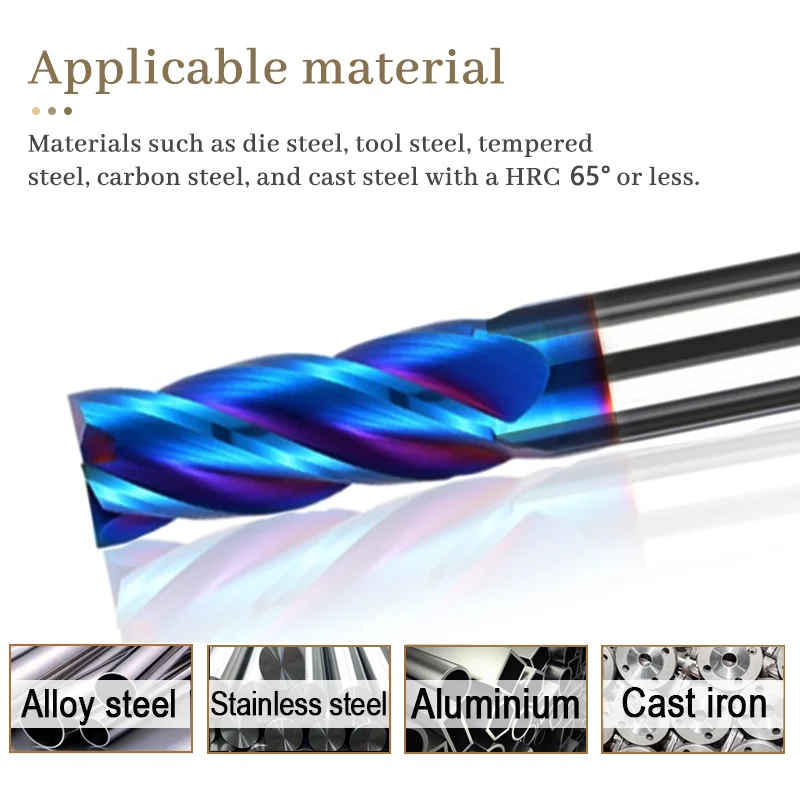

◆Applicable materials: cast iron, die steel, stainless steel, carbon steel, ordinary steel, alloy steel, etc.
◆Applicable equipment: CNC machining center, engraving machine, engraving machine, etc.

★★★Note: When choosing tools, the hardness of the material to be processed on the addition of HRC5 degrees or so, equal to the hardness of the tungsten steel tool to be purchased, so that the general will not go wrong, the price is also higher. (If the hardness of the material is about HRC35-45, then choose 50 degrees of tungsten carbide cutting tools).
