SPECIFICATIONS

Degree: R1.0

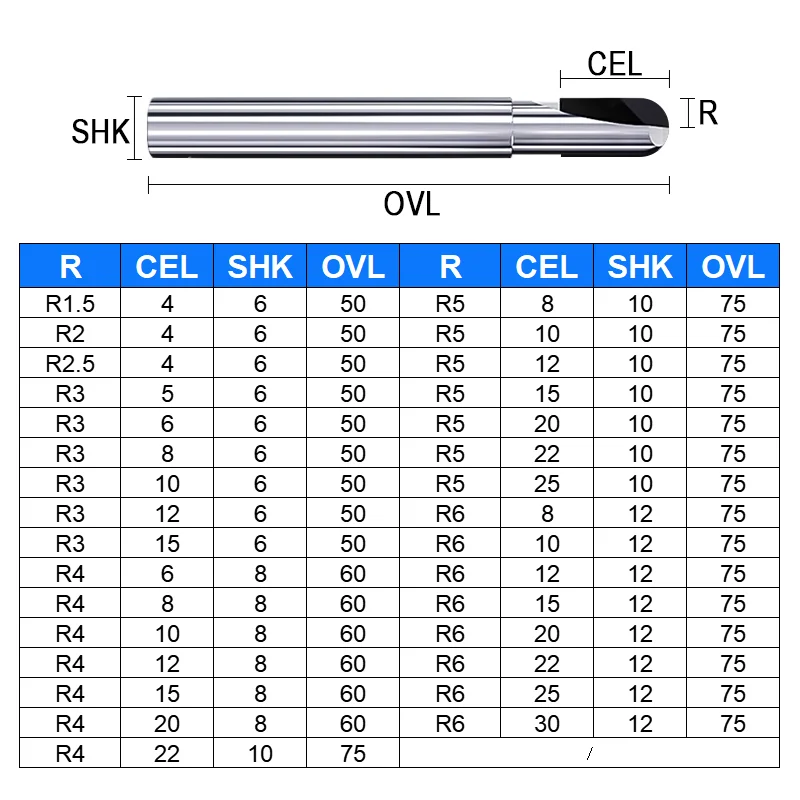

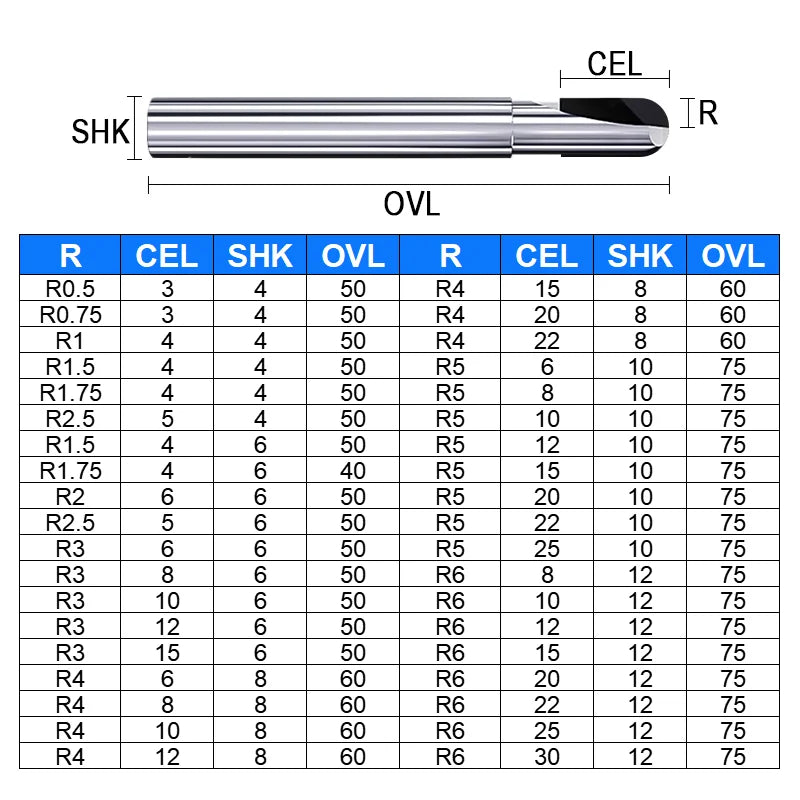

Diameter: R1.5 R2 R3 R4

High-concerned chemical: None

Material: Diamond

Model Number: PCD Diamond End Mill

Origin: Mainland China

Overall Length: 50mm 60mm 75mm

Type: Ball Nose End Mills

1.Material：Ra0.05um
2.Hardness: HV6000
3.Processing materials: Graphite, ceramic, tungsten steel, acrylic sheet, silicon carbide, plastic, copper-aluminum alloy

Product features

1.As a precision abrasive, it is used for ultra-precision grinding and polishing.

2. As a coating additive, it is used for coating metal molds, tools, etc., which can significantly enhance surface wear resistance, surface hardness and extend service life.

3. It is mainly used for grinding, usually prepared as grinding fluid for use, and can also be used to make cutting tools. It is not prone to cracking during cutting.
