SPECIFICATIONS

Applicable materials: Graphite, ceramics, tungsten steel, acrylic sheet, silicon carbide, plastic, copper-aluminum alloy

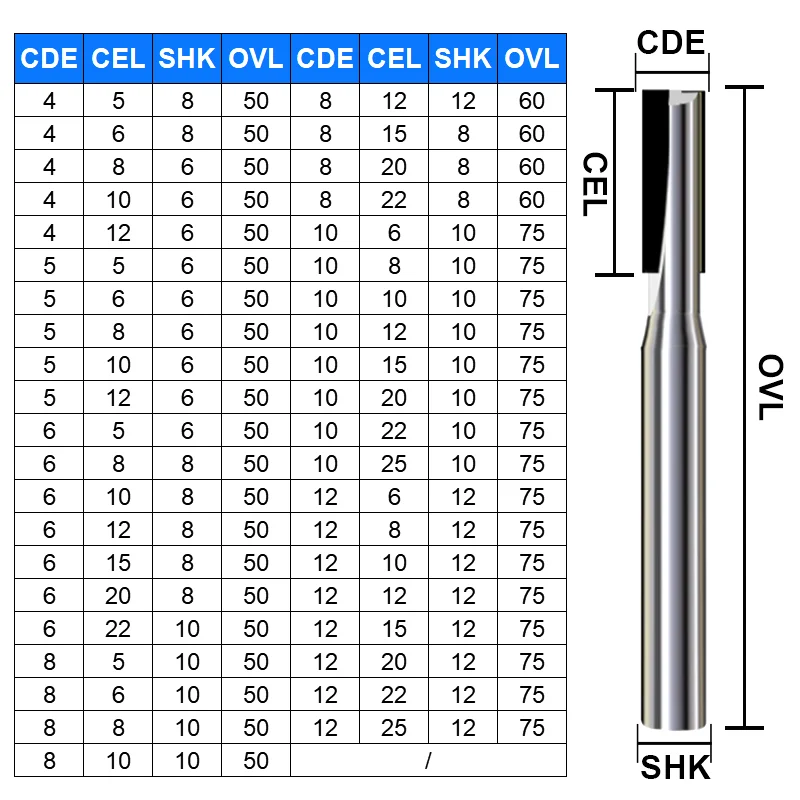

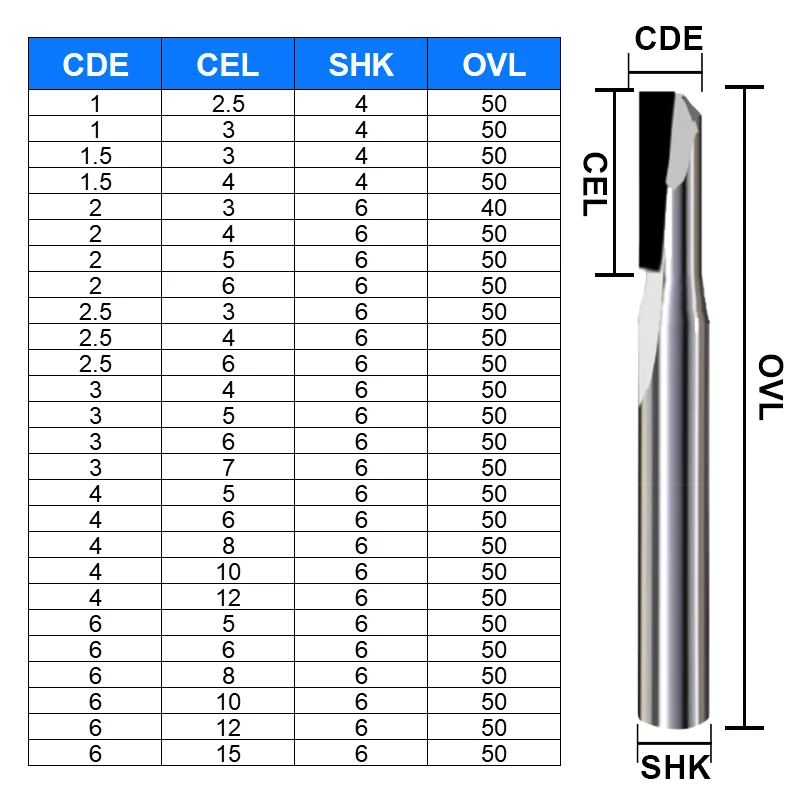

Diameter: 1mm 1.5mm 2mm 2.5mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm

Hardness: HV6000

High-concerned chemical: None

Material: Diamond

Material grade: AAAAA

Model Number: PCD/Diamond Straight bit

Number of blades: 1 Flute / 2 Flute

Origin: Mainland China

Overall Length: 50mm 60mm 75mm

Type: End Mill

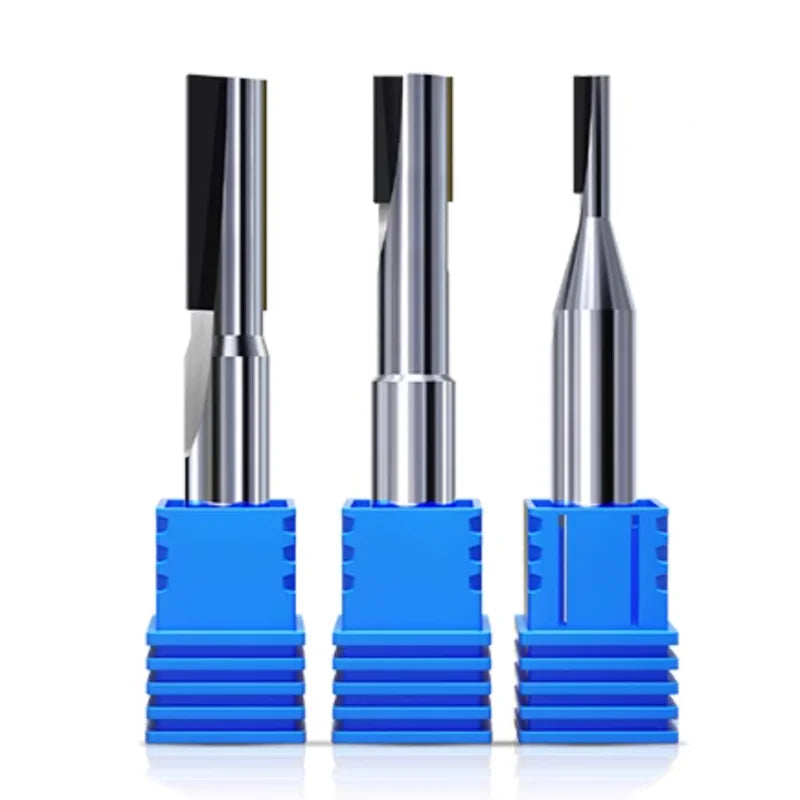

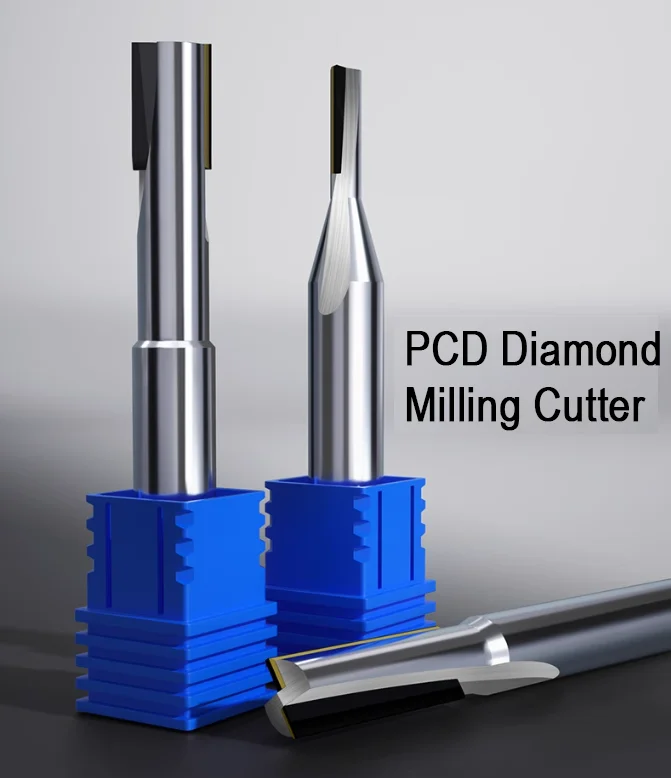

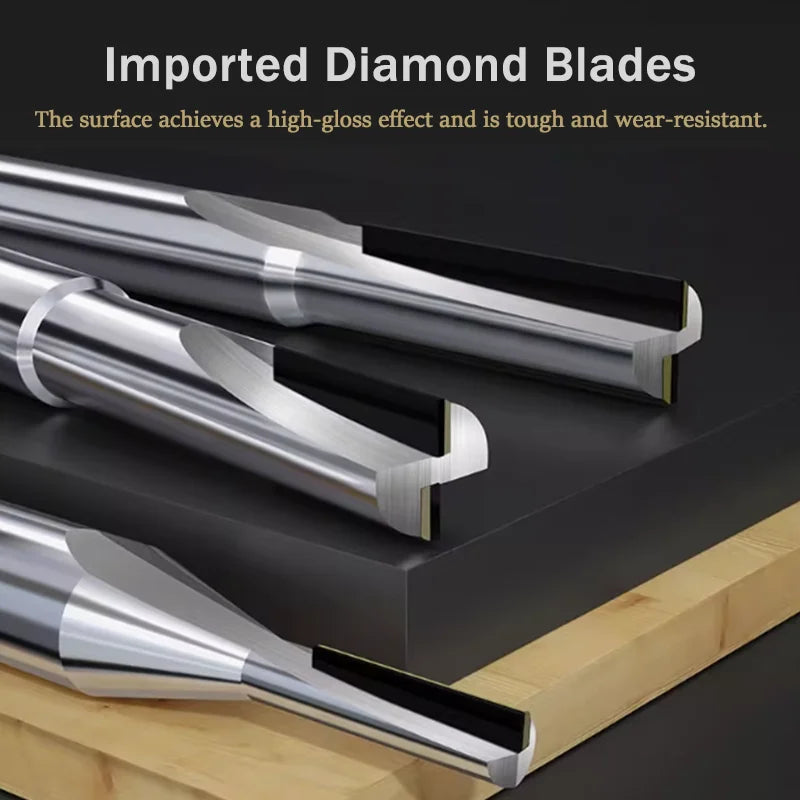

PCD Diamond Straight Flute Milling cutter

1. Material: PCD

2. Hardness: HV 6000

3.Material: Ra0.05um

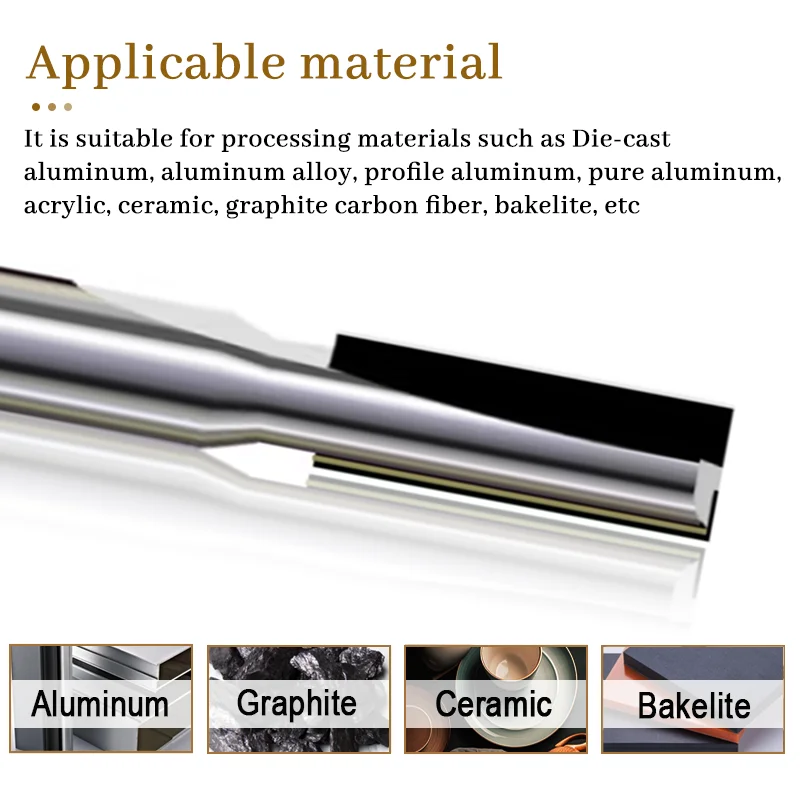

4. Processing materials: Graphite, ceramics, tungsten steel, acrylic sheet, silicon carbide, plastic, copper-aluminum alloy

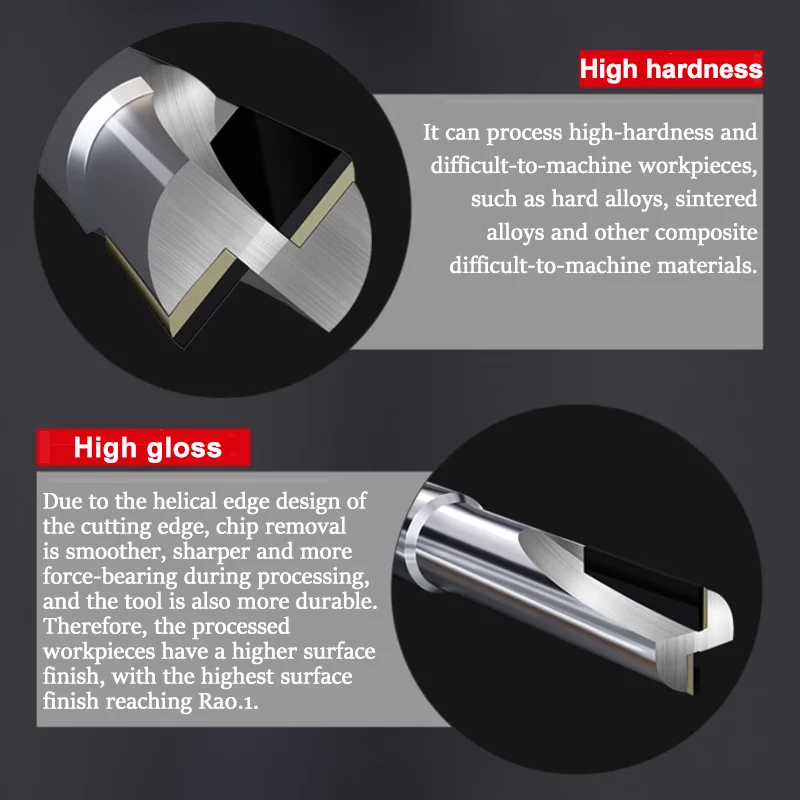

Product features

1.As a precision abrasive, it is used for ultra-precision grinding and polishing.

2. As a coating additive, it is used for coating metal molds, tools, etc., which can significantly enhance surface wear resistance, surface hardness and extend service life.

3. It is mainly used for grinding, usually prepared as grinding fluid for use, and can also be used to make cutting tools. It is not prone to cracking during cutting.
