SPECIFICATIONS

Frame Material: Plastic

High-concerned chemical: None

Installation Method: Assembly

Precision Micro-Adjustable Flip Stop Miter Gauge for Table Saw​

Achieve flawless crosscuts and miter cuts with our micro-adjustable flip stop fence. Engineered for extreme accuracy up to 0.001 inch (0.0254 mm), this versatile flip stop ensures solid stability without movement during operation. It guarantees consistent precision for woodworking and DIY projects.

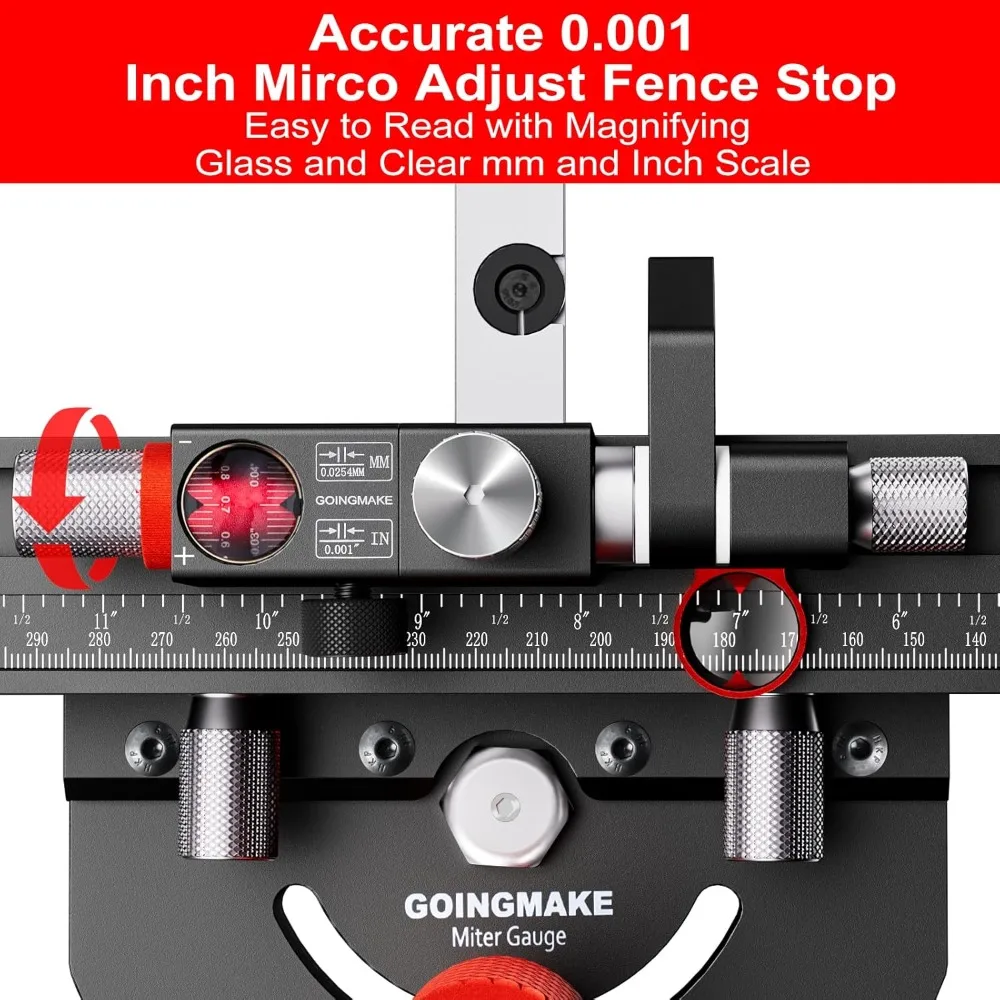

The stop features a locating pin​ that supports both square and angled workpieces. A built-in magnifying glass​ provides clear visibility of scales for quick, accurate measurements.

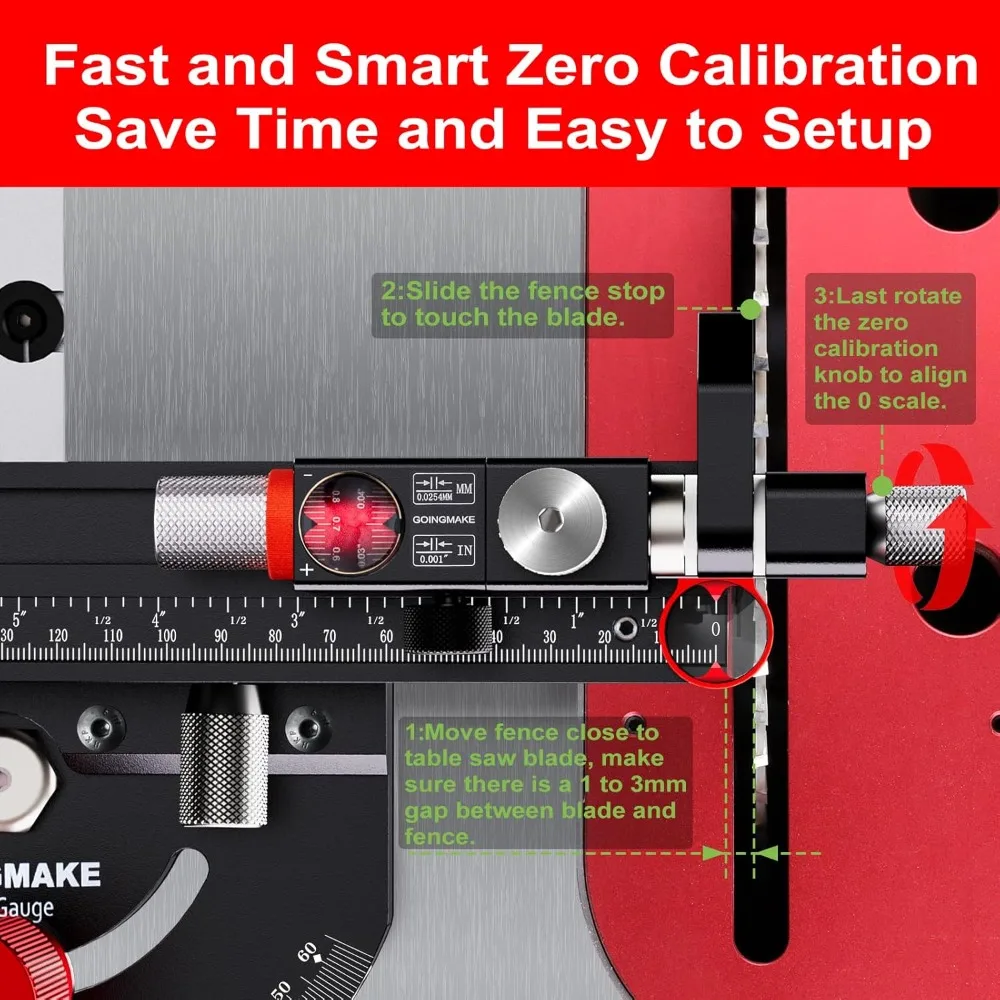

Fast Zero Calibration​

• Move the fence close to the table saw blade, maintaining a 1–3 mm gap.

• Slide the flip stop until it touches the blade.

• Rotate the zero calibration knob​ to align the "0" scale.

  This tool-free setup enables precise cuts and enhances safety by reducing kickback.

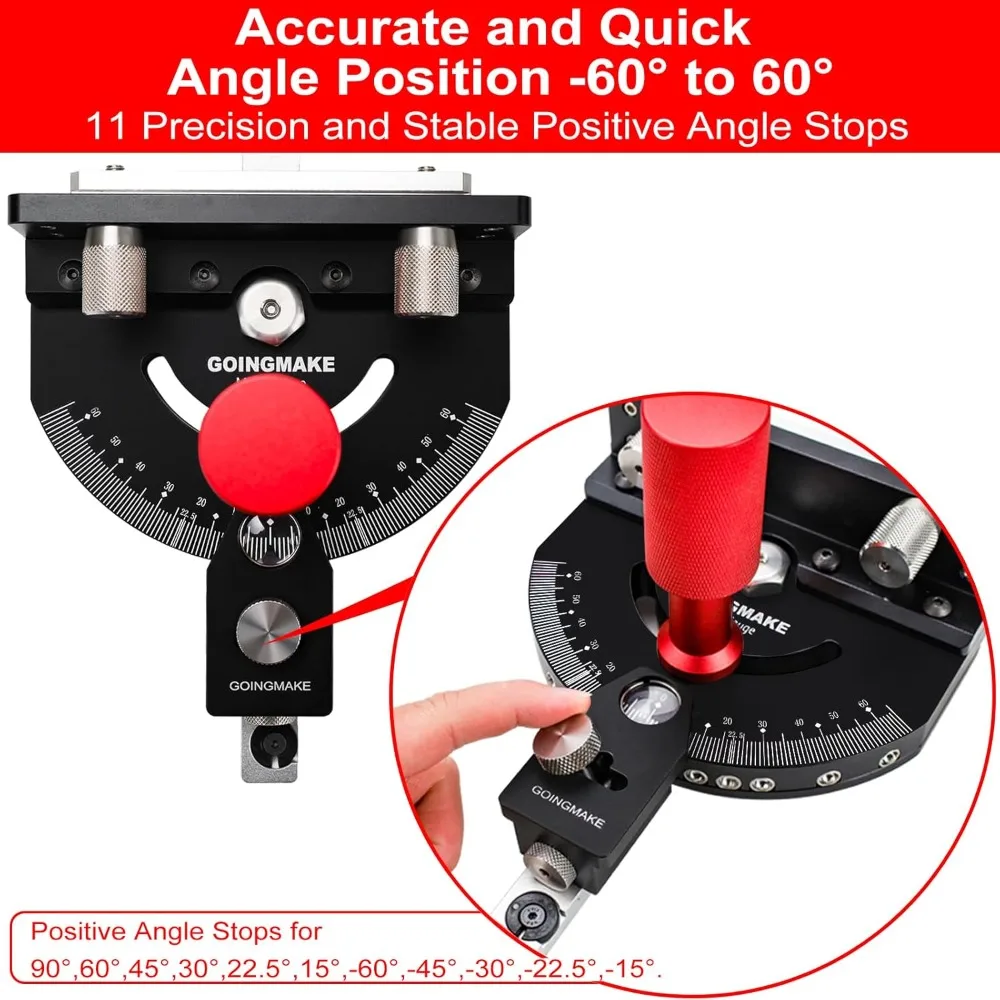

Quick Angle Adjustment​

The protractor​ offers 11 positive stops at common angles (90°, 60°, 45°, 30°, 22.5°, 15°, 0°, -15°, -22.5°, -30°, -45°, -60°). A secure locking mechanism and laser-etched scales ensure accurate alignment from -60° to 60°.

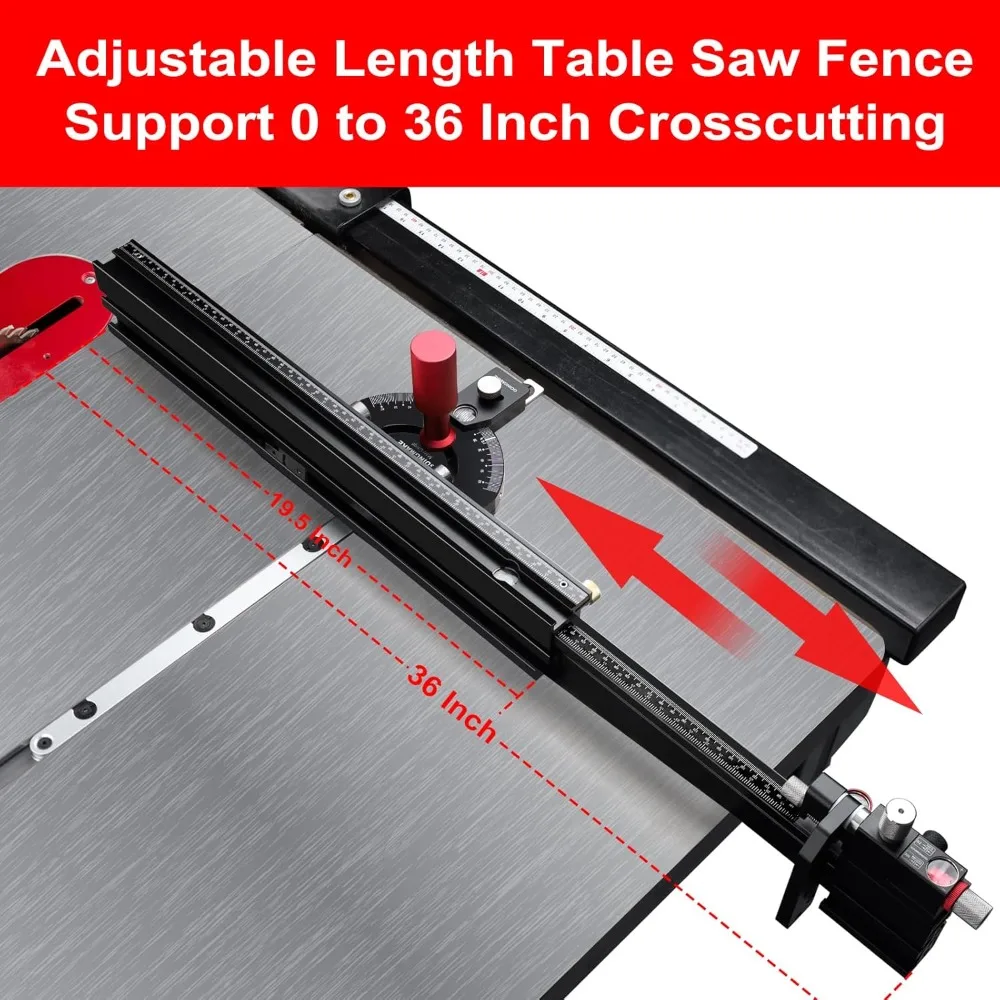

Telescoping Fence​

• Standard fence: 19.5 inches (extends up to 36 inches).

• Solid construction with mm/inch scales for measurements.

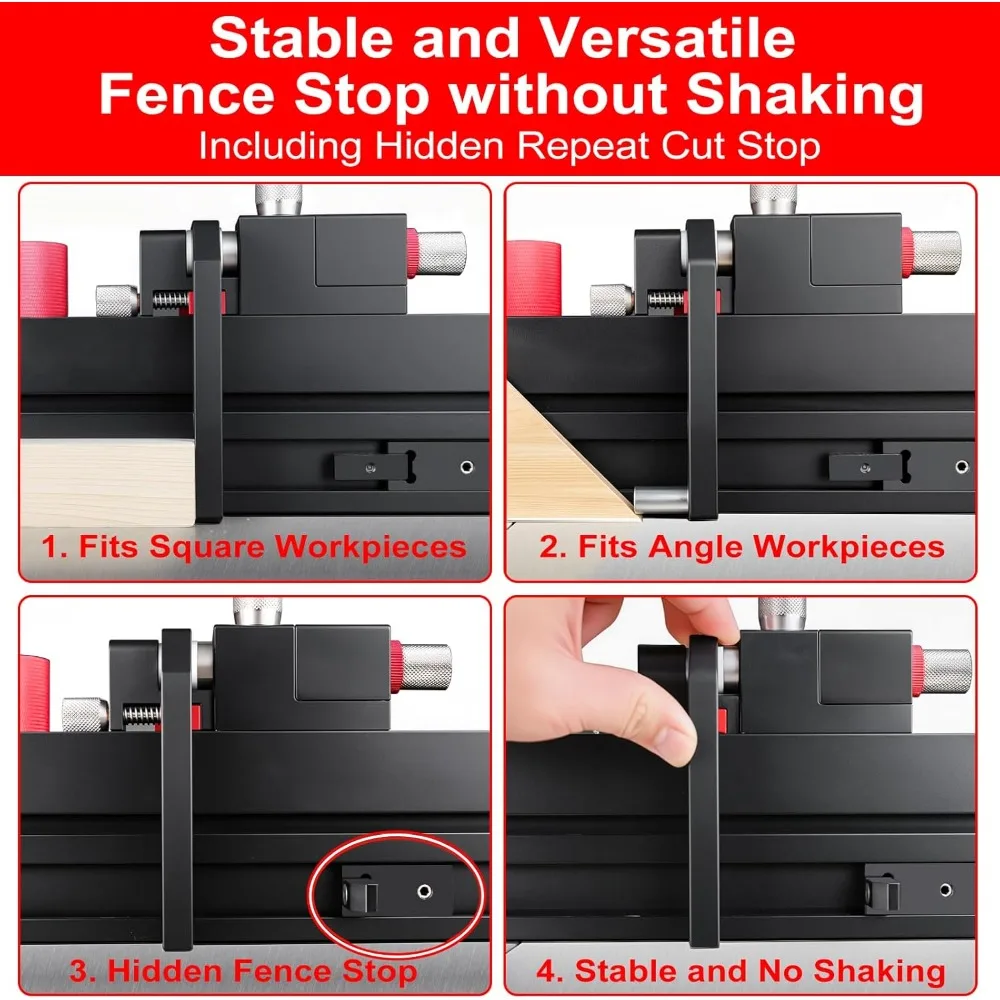

• Hidden flip stop for repeatable cuts; two front slots accept optional accessories or a sacrificial fence​ (not included).

Universal Compatibility​

The miter bar​ fits standard 3/8" × 3/4" T-slots and U-slots, with three-point adjustment (front, middle, end) for smooth sliding. Compatible with table saws, band saws, and router tables.

Key Features Summary​

• Micro-adjustable flip stop​ with 0.001-inch accuracy.

• Tool-free zero calibration and magnified scale viewing.

• 11 angle detents and telescoping fence (up to 36 inches).

• Universal miter bar for stable, precise cuts.
